機號 |
風量(m3/h) |
風壓 |
功率 |
轉速(r/min) |
噪聲dB(A) |
重量 |
SDF-3.5 |
4000 |
343 |
0.75 |
2900 |
74 |
50 |
SDF-4 |
5000 |
343 |
0.75 |
2900 |
75 |
62 |
SDF-4.5 |
6500 |
343 |
1.1 |
2900 |
76 |
70 |
SDF-5 |
8000 |
343 |
1.1 |
1450 |
77 |
85 |
SDF-5.6 |
12000 |
441 |
2.2 |
1450 |
81 |
105 |
SDF-6.3Ⅰ |
17000 |
490 |
3 |
1450 |
83 |
125 |
SDF-6.3Ⅱ |
18000 |
490 |
3 |
1450 |
83 |
125 |
SDF-7 |
26000 |
588 |
5.5 |
1450 |
87 |
165 |
SDF-8Ⅰ |
30000 |
441 |
5.5 |
1450 |
85 |
185 |
SDF-8Ⅱ |
30000 |
539 |
7.5 |
1450 |
86 |
200 |
SDF-9Ⅰ |
35000 |
588 |
7.5 |
960 |
88 |
225 |
SDF-9Ⅱ |
40000 |
588 |
11 |
1450 |
90 |
240 |
SDF-10Ⅰ |
40000 |
490 |
7.5 |
960 |
87 |
265 |
SDF-10Ⅱ |
48000 |
588 |
11 |
960 |
89 |
285 |
SDF-10Ⅲ |
50000 |
686 |
11 |
1450 |
90 |
285 |
SDF-11.2 |
60000 |
686 |
18.5 |
960 |
91 |
380 |

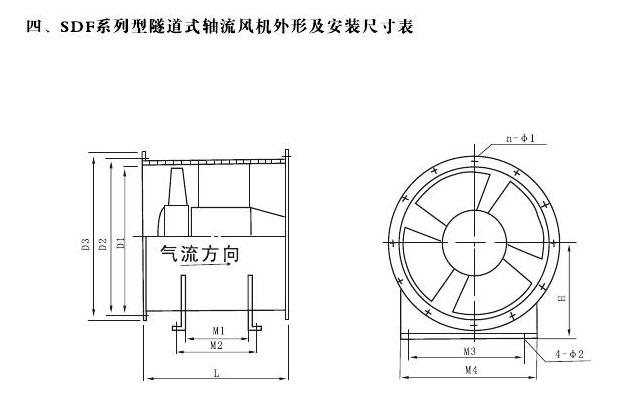

機號 |
D1 |
D2 |
D3 |
L |
M1 |
M2 |
M3 |
M4 |
n-φ1 |
4-φ2 |
H |
3.5 |
φ360 |
φ390 |
φ430 |
400 |
346 |
296 |
160 |
220 |
8-φ11 |
φ11 |
240 |
4 |
φ410 |
φ450 |
φ485 |
400 |
346 |
296 |
180 |
240 |
8-φ11 |
φ11 |
265 |
4.5 |
φ460 |
φ500 |
φ540 |
420 |
364 |
314 |
240 |
300 |
12-φ11 |
φ11 |
290 |
5 |
φ510 |
φ550 |
φ590 |
450 |
394 |
344 |
320 |
400 |
12-φ11 |
φ13 |
316 |
5.6 |
φ570 |
φ610 |
φ650 |
500 |
444 |
394 |
320 |
400 |
12-φ11 |
φ13 |
365 |
6.3 |
φ640 |
φ680 |
φ724 |
550 |
484 |
424 |
420 |
500 |
16-φ11 |
φ16 |
380 |
7 |
φ710 |
φ750 |
φ800 |
680 |
604 |
534 |
480 |
600 |
16-φ11 |
φ16 |
428 |
8 |
φ810 |
φ850 |
φ900 |
680 |
604 |
534 |
480 |
600 |
16-φ13 |
φ16 |
487 |
9 |
φ910 |
φ950 |
φ1010 |
750 |
672 |
602 |
580 |
700 |
16-φ13 |
φ16 |
550 |
10 |
φ1010 |
φ1060 |
φ1110 |
800 |
722 |
652 |
580 |
700 |
20-φ13 |
φ16 |
600 |
11.2 |
φ1130 |
φ1180 |
φ1250 |
900 |
812 |
732 |
650 |
800 |
20-φ13 |
φ19 |
660 |
