序號 |
葉輪直徑 |
電機極數 |
風量(m3/h) |
靜壓 |
風機轉速(r/min) |
電機功率 |
噪聲 |
4 |
400 |
6 |
3200 |
50 |
910 |
0.18 |
60 |
4.5 |
450 |
6 |
3500 |
40 |
850 |
0.18 |
61 |
5.6 |
560 |
6 |
4860 |
40 |
910 |
0.25 |
70 |
8 |
4800 |
40 |
650 |
0.13 |
63 |
||
8 |
6000 |
60 |
700 |
0.37 |
62 |
||
5.8 |
580 |
6 |
12000 |
50 |
960 |
0.75 |
74 |
6.3 |
630 |
6 |
9700 |
40 |
850 |
0.36 |
71 |
8 |
6500 |
40 |
650 |
0.165 |
63 |
||
8 |
8000 |
50 |
720 |
0.37 |
66 |
||
6.6 |
660 |
8 |
8000 |
60 |
720 |
0.37 |
67 |
7.1 |
710 |
8 |
10500 |
60 |
720 |
0.55 |
67 |
8 |
12500 |
60 |
720 |
0.75 |
70 |
||
8 |
12800 |
100 |
720 |
0.75 |
71 |
||
8 |
14000 |
55 |
720 |
1.1 |
68 |
||
8 |
14800 |
40 |
710 |
0.75 |
72 |
||
7.6 |
760 |
6 |
10200 |
150 |
960 |
1.1 |
78 |
8 |
16000 |
65 |
720 |
1.1 |
70 |
||
8 |
18500 |
50 |
720 |
1.1 |
74 |
||
8 |
800 |
8 |
20000 |
63 |
720 |
1.5 |
74 |
9 |
900 |
8 |
16000 |
50 |
700 |
1.1 |
71 |
8 |
23000 |
50 |
720 |
1.5 |
73 |
||
8 |
24500 |
100 |
720 |
2.2 |
75 |
||
9.24 |
924 |
6 |
26280 |
180 |
960 |
4 |
82 |
6 |
30240 |
120 |
960 |
4 |
83 |
||
6 |
30240 |
220 |
960 |
5.5 |
84 |
||
8 |
26280 |
80 |
720 |
2.2 |
75 |

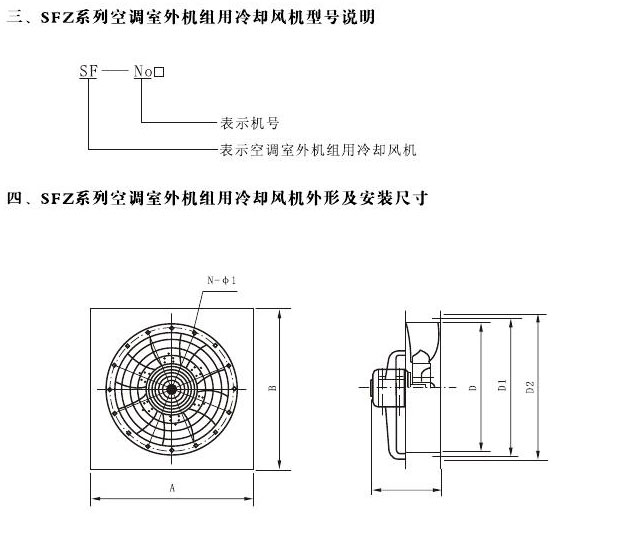

機號 |
D |
D1 |
D2 |
A |
B |
L |
L1 |
n-φ1 |
4 |
410 |
452 |
490 |
530 |
530 |
300 |
130 |
8-φ11 |
4.5 |
460 |
502 |
540 |
580 |
580 |
320 |
150 |
12-11 |
5.6 |
570 |
612 |
650 |
730 |
730 |
360 |
180 |
12-11 |
5.8 |
590 |
632 |
670 |
750 |
750 |
360 |
180 |
12-11 |
6.3 |
640 |
682 |
720 |
800 |
800 |
360 |
180 |
16-11 |
6.6 |
670 |
712 |
750 |
830 |
830 |
360 |
180 |
16-11 |
7.1 |
720 |
763 |
800 |
880 |
880 |
430 |
220 |
16-11 |
7.6 |
770 |
813 |
850 |
930 |
930 |
430 |
220 |
16-11 |
8 |
810 |
852 |
890 |
970 |
970 |
460 |
250 |
16-13 |
9 |
910 |
853 |
990 |
1070 |
1070 |
550 |
250 |
16-13 |
9.24 |
934 |
977 |
1014 |
1094 |
1094 |
550 |
250 |
16-13 |
